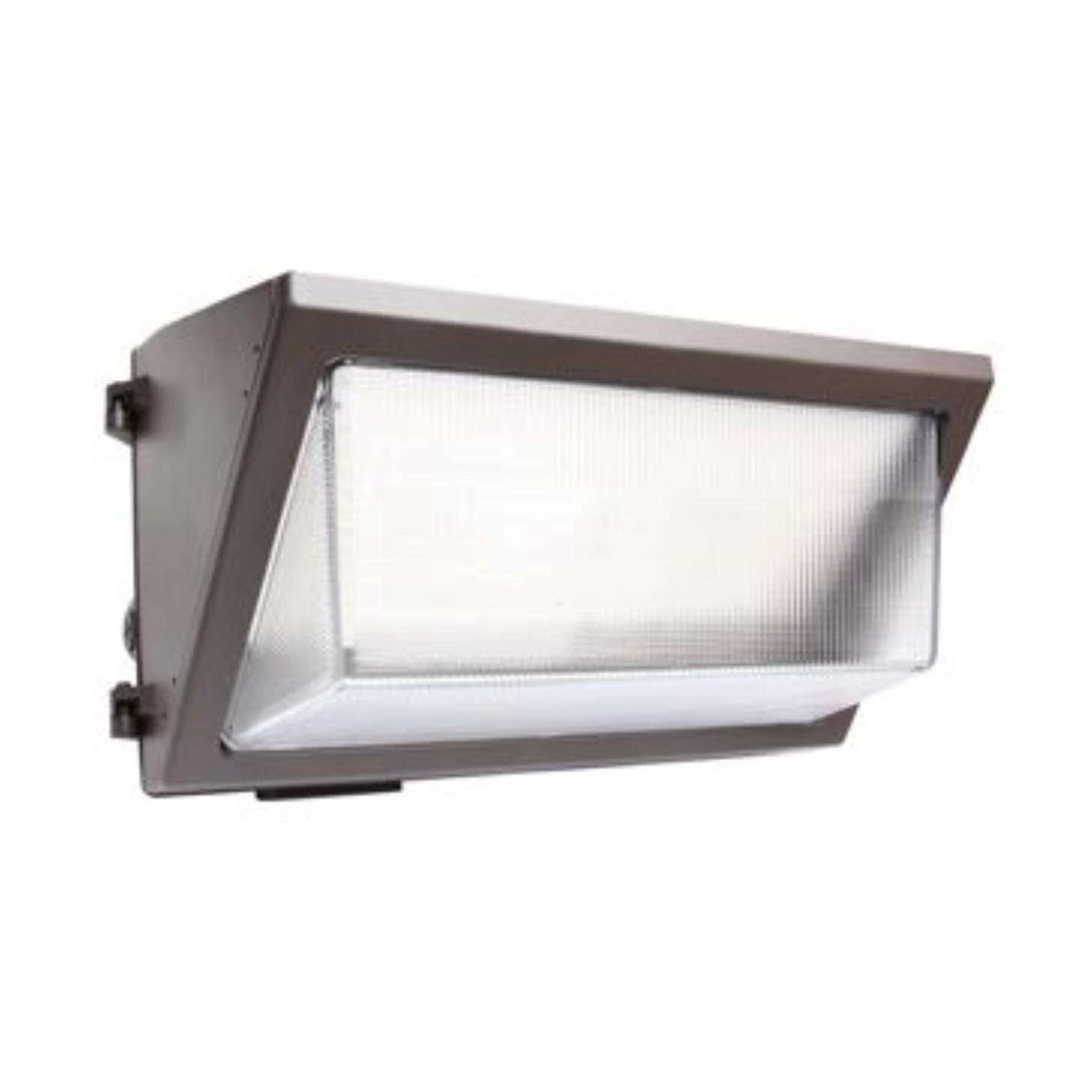

MaxLite 120 W 1 Lights LED Wall Pack

The new generation of wall max open-face LED wall packs provides flexibility for distributors and contractors with field-selectable CCTs, wattages (55W and 120W models) and field-installable controls. The housing has been enlarged to cover HID fixture footprints and accommodate battery backup in all sizes. The wall packs feature a controls-ready receptacle compatible with c-Max controls. The simple plug-and-play sensor receptacle enables c-Max control nodes to be added at the time of installation or in the future. as well as allowing for future control upgrades without changing the fixture. The receptacle is located at the bottom of the fixture and looks through a window, which minimizes the impact on the fixture aesthetics. A cover is included to hide the window when controls are not used.

This fixture is intended to be connected to a properly installed and grounded UL listed junction box

Rugged die cast housing with corrosion resistant

Impact resistant borosilicate glass

Commercial installation, service and maintenance of luminaires should be performed by a qualified licensed electrician

4 x 1/2 in. conduit holes, one on each side for surface conduit applications

High voltage option – 277- 480V

Battery backup options – 0 degree C and -20 degree C

Avi-on network controls option available

To reduce the risk of death, personal injury or property damage from fire, electric shock, falling parts, cuts and abrasions and other hazards read all warnings and instructions included with and on the fixture box and all fixture labels

Before installing, servicing or performing routine maintenance upon this equipment, follow these general precautions
